SFDC SSO : MM API Setting Document

SFDC SSO : MM API Setting Document



Notes

Before you begin this setup:

  1. The MindMatrix Managed package should be installed on the SFDC Environment.

  2. A connection between MindMatrix and SFDC must be established.

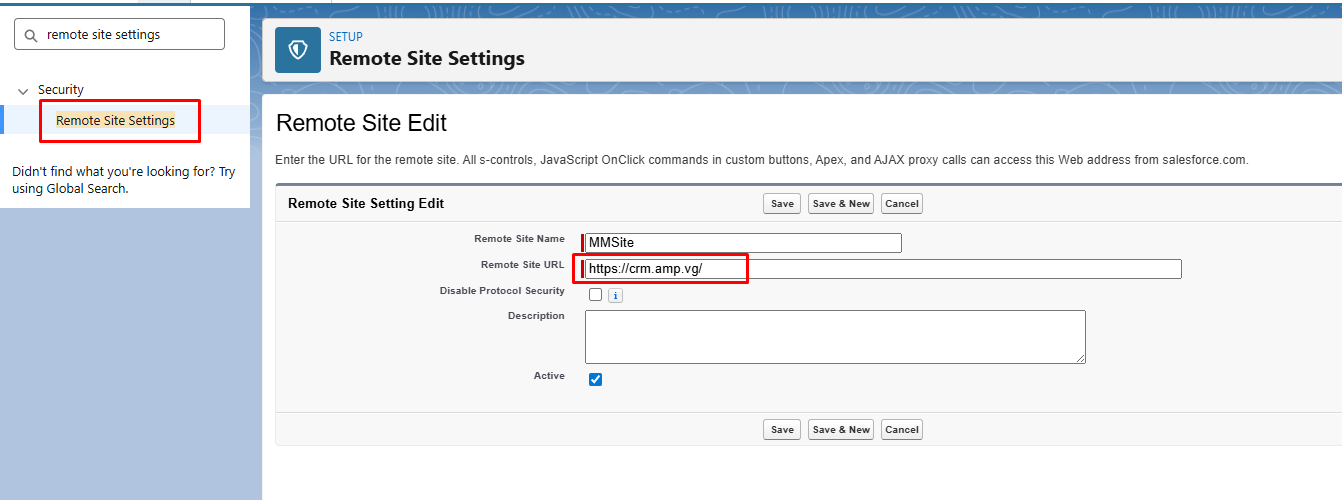

Step 1: Remote Site Settings


In SFDC, go to 'Remote Site Settings' and add the MM Install URL.

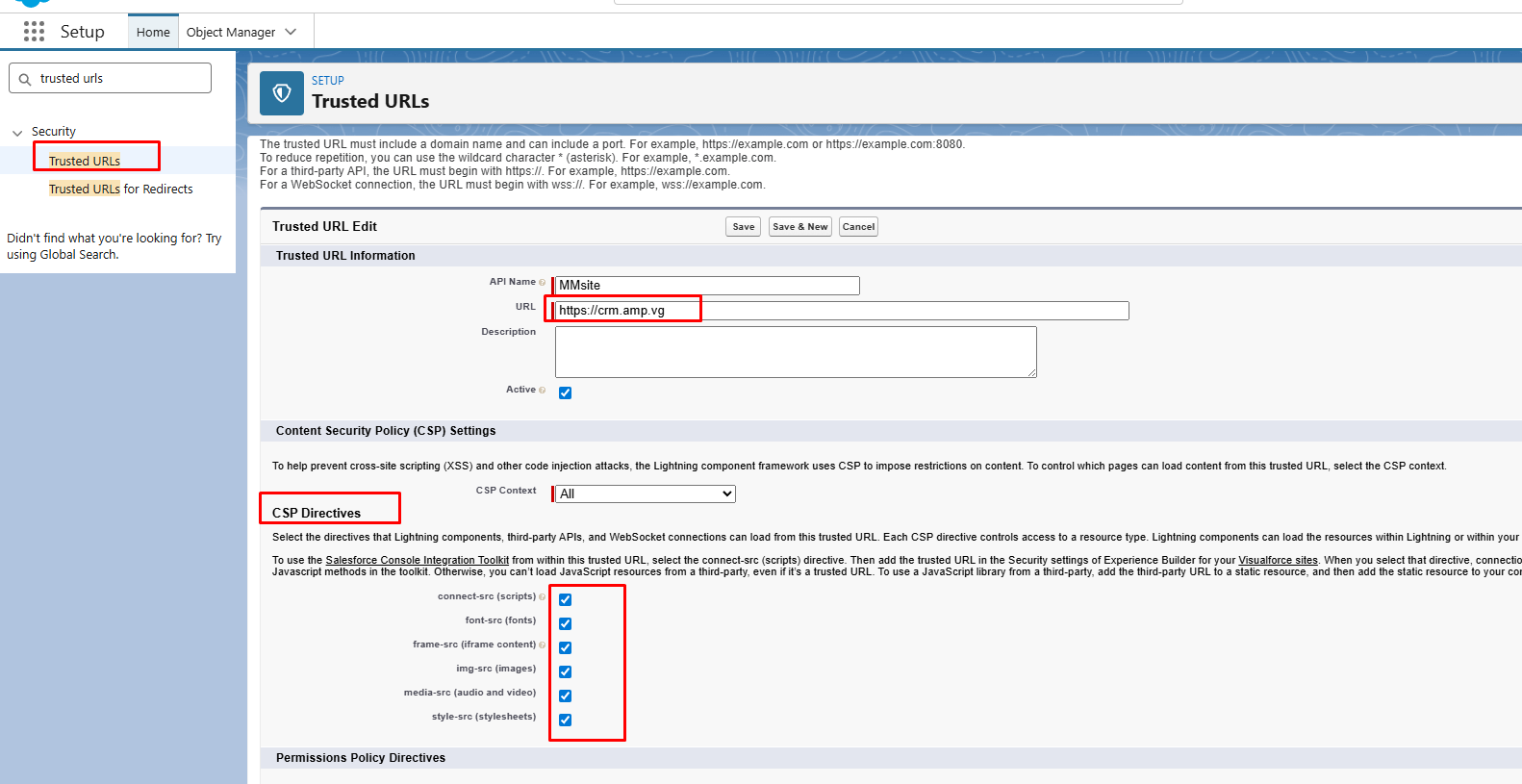

Step 2: Trusted URLs


In SFDC, go to 'Trusted URLs' and add the MM Install URL. Ensure all checkboxes for CSP Directives are checked.

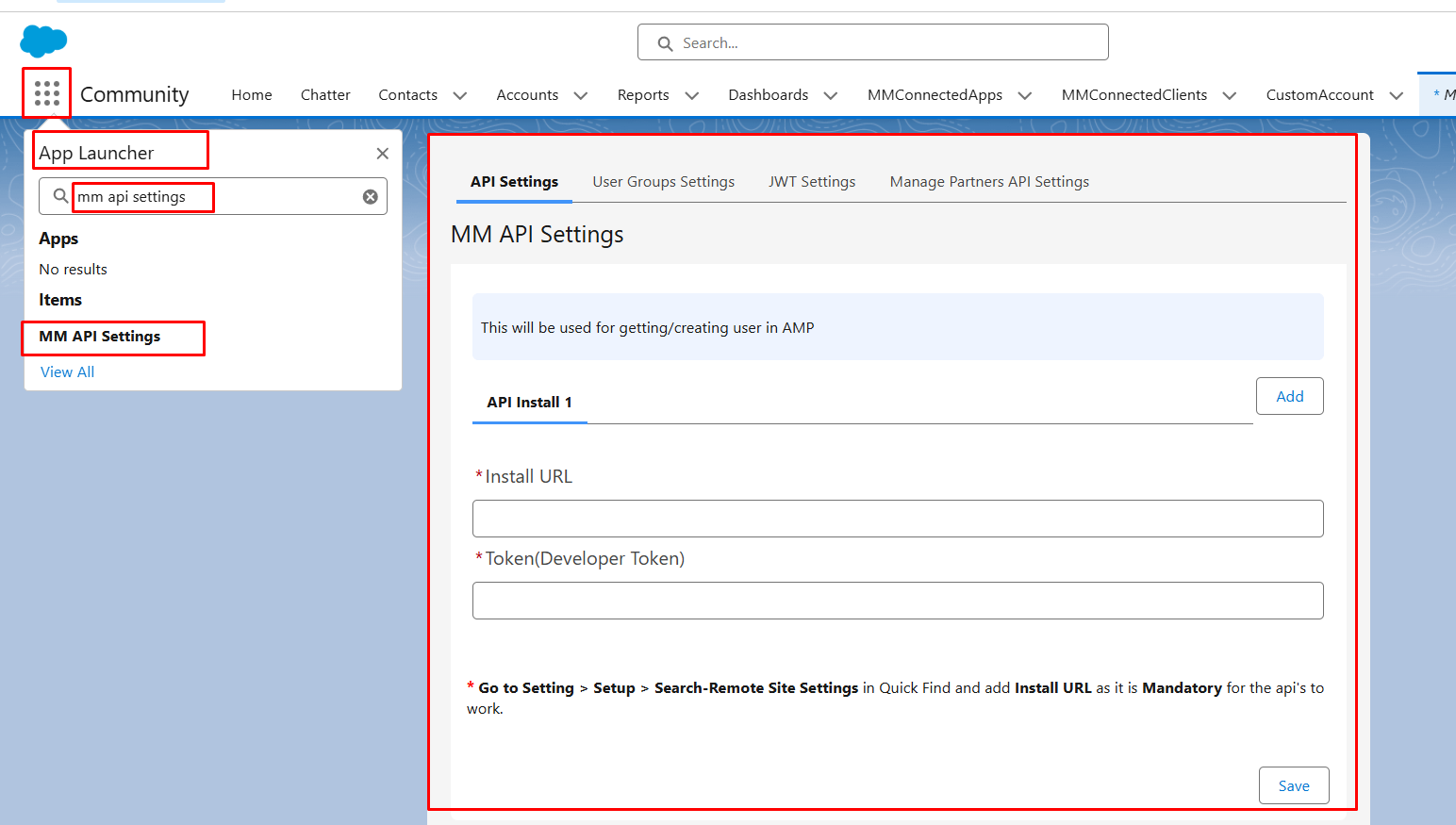

Step 3: App Launcher


From the App Launcher, search for the MM API Setting tab.



Step 4: API Settings Tab


Go to the API Settings tab:

  • Install URL: Enter the MM Install URL, e.g., https://crm.amp.vg/

  • Token (Developer Token): Enter the token provided by the MM Team.

  • Save the settings.

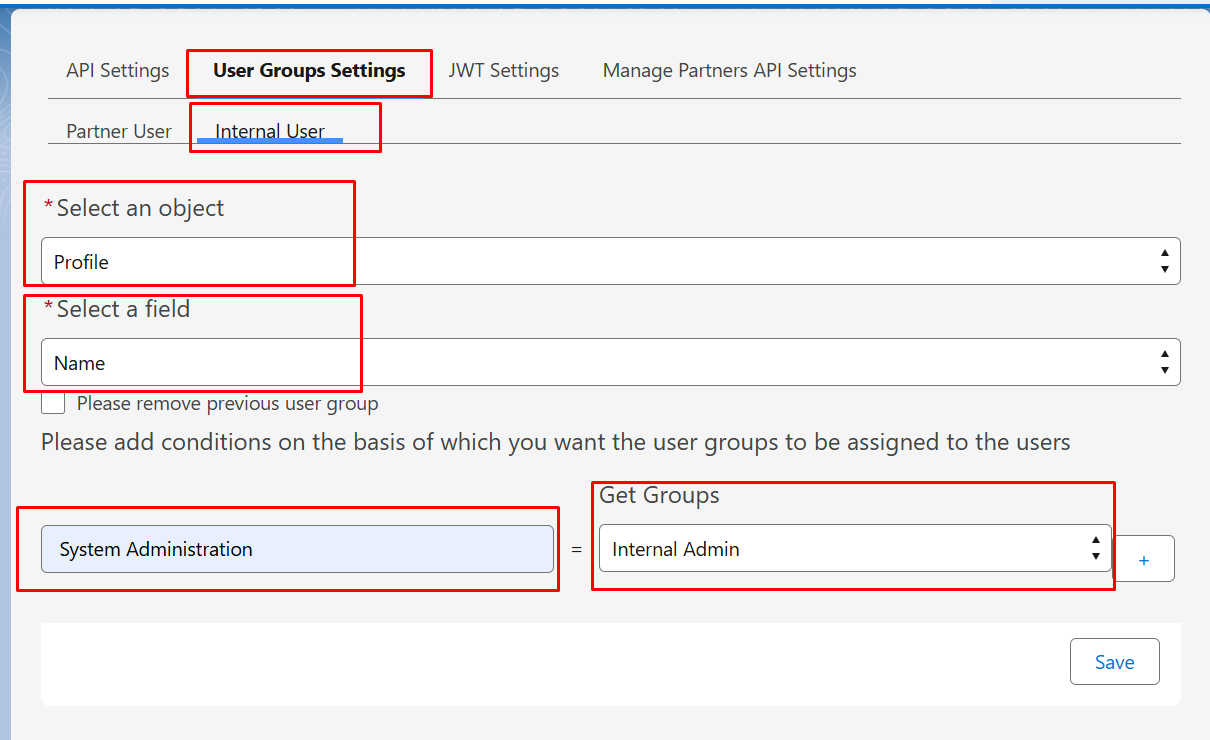

Step 5: User Groups Settings Tab


After saving, you will be taken to the User Groups Settings tab.

Internal User Sub Tab1

  • Select an object: Select the Profile object.

  • Select a field: Select the Name field.

  • In the left input box, enter the user profile name (as seen in the screenshot below).

  • In the right input box, the MM user group will automatically populate. Select the group you want to assign to this user profile.

  • Note: If a profile is not defined here, the user will be assigned to the default Sales group in MM when they try to access MindMatrix.

  • Save the settings.

To give access to Partner users, switch to the Partner User sub tab.

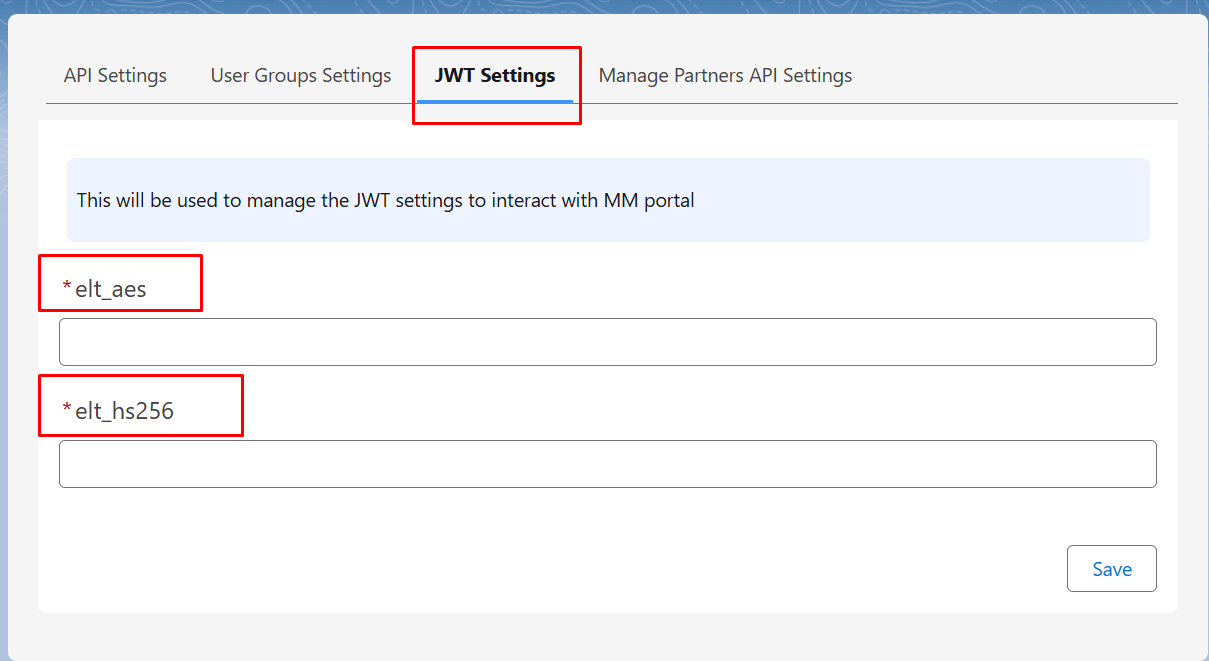

Step 6: JWT Settings Tab


After saving, you will be taken to the JWT Settings tab.



  • The MindMatrix team will provide you with the elt_aes and elt_hs256 value

Example :

<elt_aes>aabbbcc</elt_aes>

<elt_hs256>ddeeffgghhiijj</elt_hs256>

  • Copy only the values inside the tags (e.g., aabbbcc), not the tags themselves.

  • Save the settings.

Setup is now complete.
